Discover the Tire Kit That Solves Off-Roading Tire Problems, Safer, Faster, and Less Effort.
Out here, a sliced sidewall or a dead TPMS sensor doesn't just cost you a tire — it costs you the rest of the trip, or a week waiting on a shop that might not even want the job. Every one of these means breaking the bead. Do it yourself, in minutes, with the one tool built to anchor where a plank and a hammer can't.
Off-Road Vehicles Include:
If You Wheel Off-Road, You Probably Ran Into These Issues Before
Five situations every off-roader hits eventually. Read them and see how many you've already lived through.
01 — The rock finds your sidewall
You hear the scrape, and you can see daylight through the rubber.
02 — The TPMS light won't go out
Bad sensor or real leak? You're checking that tire at every stop.
03 — The puncture is too big for a plug
Plug kit in hand, already knowing it won't hold the drive home.
04 — You aired down and the bead let go
You pump it up, crawl forward, and watch it walk right back off.
05 — The tire keeps going soft overnight
Same tire, down 6 PSI every morning. No nail. No screw.
Every one of them has the same fix — and every one of them stalls at the same step. So what does getting stuck there actually cost you?
Here's What It Costs You
Every one of those five ends the same way: the tire has to come off the rim. That's where the bill starts.
Sidewall slice
Tire comes off the rim, then it's replaced
$150–$500+ for one tire
Dead TPMS sensor
Bead has to be broken to reach the sensor
$100+ in shop labor, plus the sensor
Puncture too big to plug
Dismount and patch from the inside
A plug that fails miles from the truck
Bead let go
Reseat it in the dirt with what you have
Hours of daylight, or a tow
Slow leak at the bead
Bead seat has to be cleaned by hand
Airing up every single morning
And it keeps collecting. Not once — every trip, every season, for as long as breaking a bead means calling someone else.
The Missing Piece: Stop Losing Time, Effort, and Patience Every Time You Break a Bead
Every one of the situations above ends the same way — you need the tire off the bead, cleanly, without wrecking the rim or the tire. Most off-roaders reach for whatever's already in the rig: a plank and a hammer against the sidewall, a can of starting fluid and a pair of pliers, or just muscle and a prayer.
The problem isn't that these are impossible. It's that they're inconsistent. A plank can slip at the rim. A hammer swing can miss and hit the rim. Starting fluid on a bead is a controlled explosion you're aiming with your hands. None of these give you a repeatable, safe way to do the one job you actually need done: break the bead loose without gouging an expensive rim or hurting yourself trailside.
A purpose-built bead breaker solves this by anchoring directly to the rim lip instead of bracing against whatever's nearby, so the force goes exactly where it needs to go — not into the sidewall, not into your hands.
This isn't a generic bead breaker — it's patented (US9333819B1). A wood block, a pry bar, or a knockoff tool can't anchor at the rim lip the way this does, because legally, they can't build it this way. That's not a marketing line — it's the actual reason the anchor point holds when everything else slips.

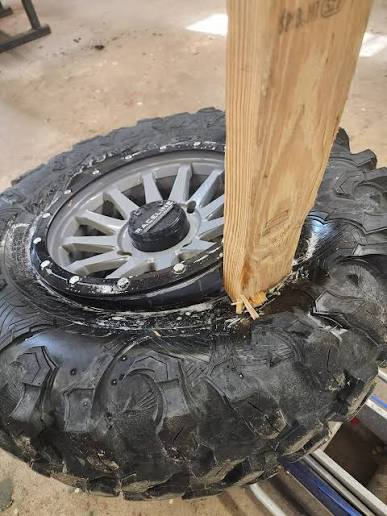

Before you reach for the wood-block-and-hammer method again: it works, but it's not free. It costs you the risk of a slipped plank, a scratched rim, or a sidewall you meant to save. There's a reason off-road forums are full of both the DIY method and people asking what actually replaces it.
Introducing BeadBuster
The tool that turns "I need a shop" into "I can handle this right here." BeadBuster is a portable, patented rim-lip bead breaker built for off-roaders who would rather fix it trailside than trailer it home.
Why it works when other methods fail
BeadBuster clamps directly to the rim lip — not the sidewall — so the force is controlled, repeatable, and aimed exactly where it needs to go. No bench required. No shop air. Just a tool that fits in your rig and an impact wrench or breaker bar.

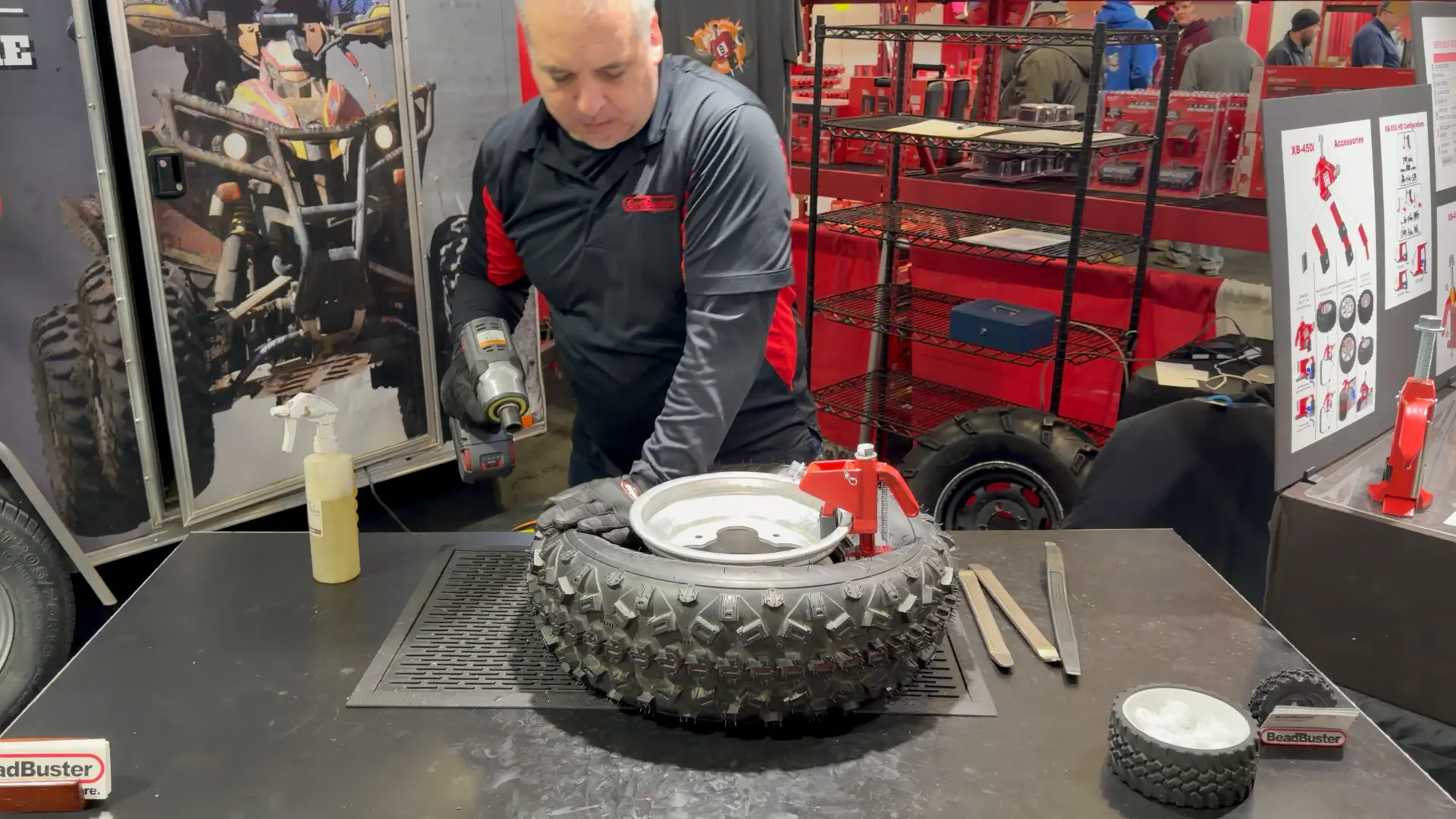

How It Works
Our patented clamp-and-ram mechanism grips the rim and drives the bead loose in a few simple steps. No bench, no shop air, no improvised anchors — just a wrench or impact driver.
- 1
Deflate the tire
Remove the valve core to fully release air pressure before starting.
- 2
Lube the bead
Apply tire mount lube (or soapy water) to the bead. This reduces friction so the tool slides in instead of fighting the rubber.
- 3
Position the feet
Press the tool's feet into the gap between the rim lip and the tire bead. Push down on the sidewall first to open a small gap for the feet to enter. Never use a hammer to force it into place.

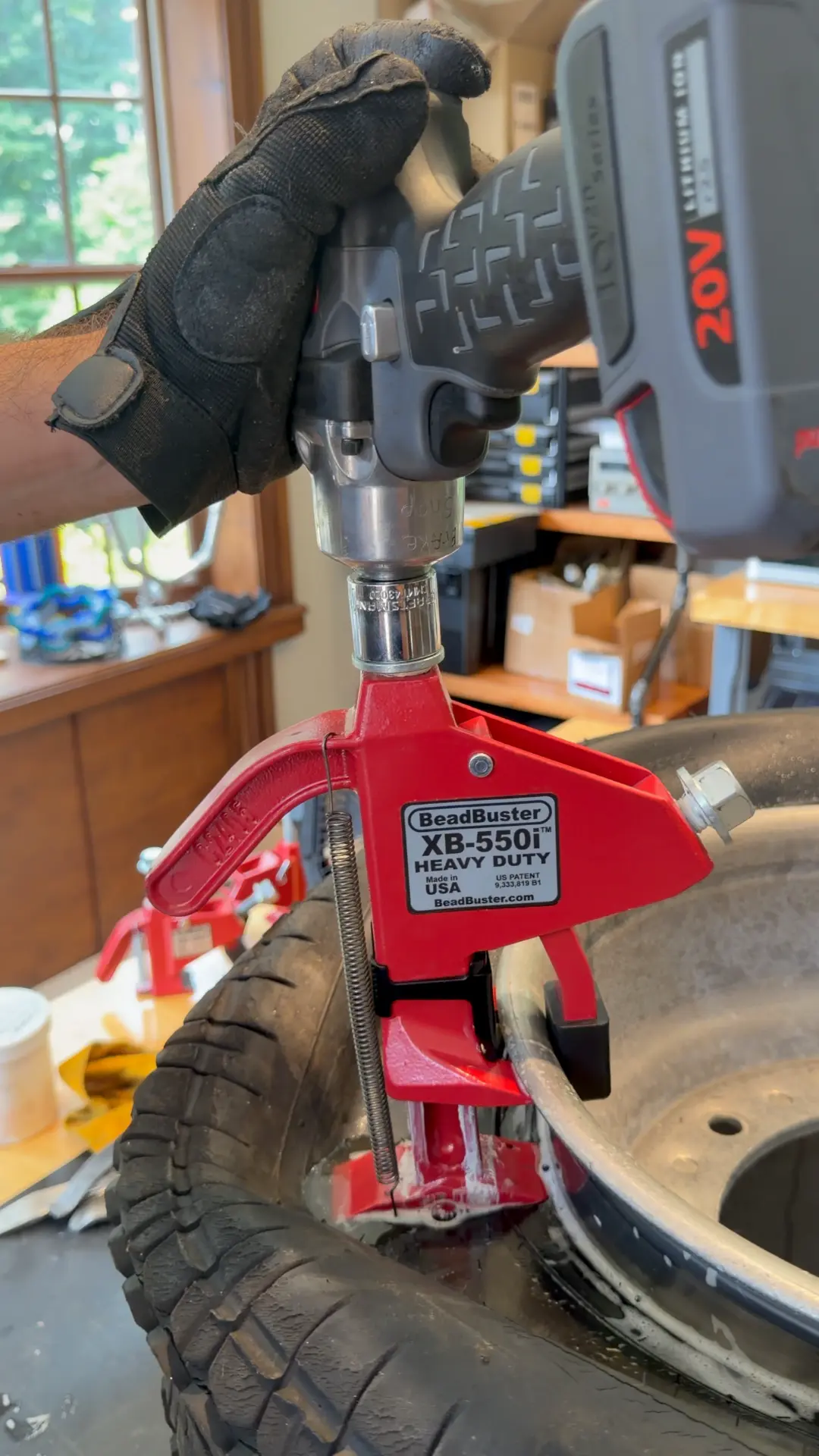

- 4
Clamp the tool down
Tighten the clamp bolt with a wrench, ratchet, or impact driver to pull the feet fully in and align the tool against the rim. Proper alignment here is what protects the rim from damage.
- 5
Run the ram
Tighten the ram bolt until the bead pushes past the rim's bead retainer. Poly-protected contact points keep the rim finish safe throughout.
- 6
Repeat around the rim
Loosen the clamp and ram bolts, move to the next spot, and repeat. Most tires break free in 2–3 positions, then the tire is free to repair or reseat.
Safety tip: Always wear eye protection, keep hands clear of the ram foot, and make sure the tire is fully deflated before breaking the bead.
Breaking Beads Without BeadBuster vs. With BeadBuster
Both "work." One means beating a 2x4 into your sidewall on the shop floor. The other clamps to the rim and lets a cordless impact wrench do the work.
Swipe the table sideways to compare →
| Without BeadBuster | With BeadBuster | |
|---|---|---|
| What you're using | A 2x4, a hammer, and your body weight | One clamp-on tool and a cordless impact wrench |
| Where the force goes | Down through the sidewall wherever the plank lands | Straight down onto the bead, anchored at the rim lip |
| Risk to the wheel | Wood grinding on the rim lip — gouges and scratches | Padded contact, no prying against the rim face |
| Risk to the tire | Pinched or torn sidewall on a tire you meant to save | No sidewall leverage — bead only |
| Risk to you | Plank can kick out or slip mid-swing | Clamped in place; you stand clear and run the wrench |
| Repeatability | Different every time, depends on ground and luck | Same 4 steps on every wheel |
| Time per bead | 10–30+ minutes of resetting and re-swinging | Usually a couple of minutes |
| Works on the trail | Only with lumber, a hammer, and flat ground | Fits in a bag with an impact wrench |
After Breaking the Bead, Now What?
Breaking the bead is the first half. You still have the tire to come off the rim so you can patch, replace, or inspect it. A set of tire spoons and the right technique makes it a quick, clean job.
- 1
Insert tire spoons
Hook the spoon under the bead and over the rim lip. Use the rim edge as a pivot so the spoon does the lifting, not your back.
- 2
Leverage the bead over the rim
Work in short bites around the wheel. A second spoon holds your progress so the rubber can't slip back where you already cleared it.
- 3
Lift the tire free
Once the top bead is clear, push the tire down and lift the rim straight out. The tire is now off and ready to patch, replace, or inspect.
Pro tip: Keep the bead pushed down into the rim drop-center as you work the spoon. That slack is what makes the tire come off without a fight.
Here's How to Remount Your Bead
Getting the tire back on the rim is the same job in reverse. Clamp the wheel, work the bead over with tire spoons, and finish with a few controlled bursts so the tire seats cleanly.
- 1
Clamp the rim steady
Use the BeadBuster to hold the wheel fixed so it won't move while you seat the tire. The rim stays put while the spoon does the work.
- 2
Insert tire spoons to pull the tire on
Hook the spoon under the bead and pull the tire over the rim lip. A second spoon keeps the seated section from slipping back off.
- 3
Work the spoons around the rim
Leapfrog the spoons in small bites until the first bead is fully seated. Keep the tire pushed into the drop-center so the rubber has slack to stretch.
- 4
Finish and remove the tool
Use the impact wrench to ease off the last section, then lift the tool clear. The tire is back on the rim and ready to inflate.
Pro tip: Keep the tool square to the rim when you reclamp on the second side — that's what keeps the drive screw pushing straight down on the bead.
Scared to scratch your rims?
Beadlocks, powder-coated steel, and forged aluminum wheels aren't cheap — and a trail fix shouldn't cost you the wheel. The usual DIY method means prying with a screwdriver, hammering a tire iron, or levering against the rim lip. One slip and the rim is scarred.
The XB-450i and XB-550i HD were built so you don't have to choose between fixing the tire and protecting the wheel. They clamp directly to the rim lip and drives the bead loose from underneath — the force is applied below the bead, not against the rim face.

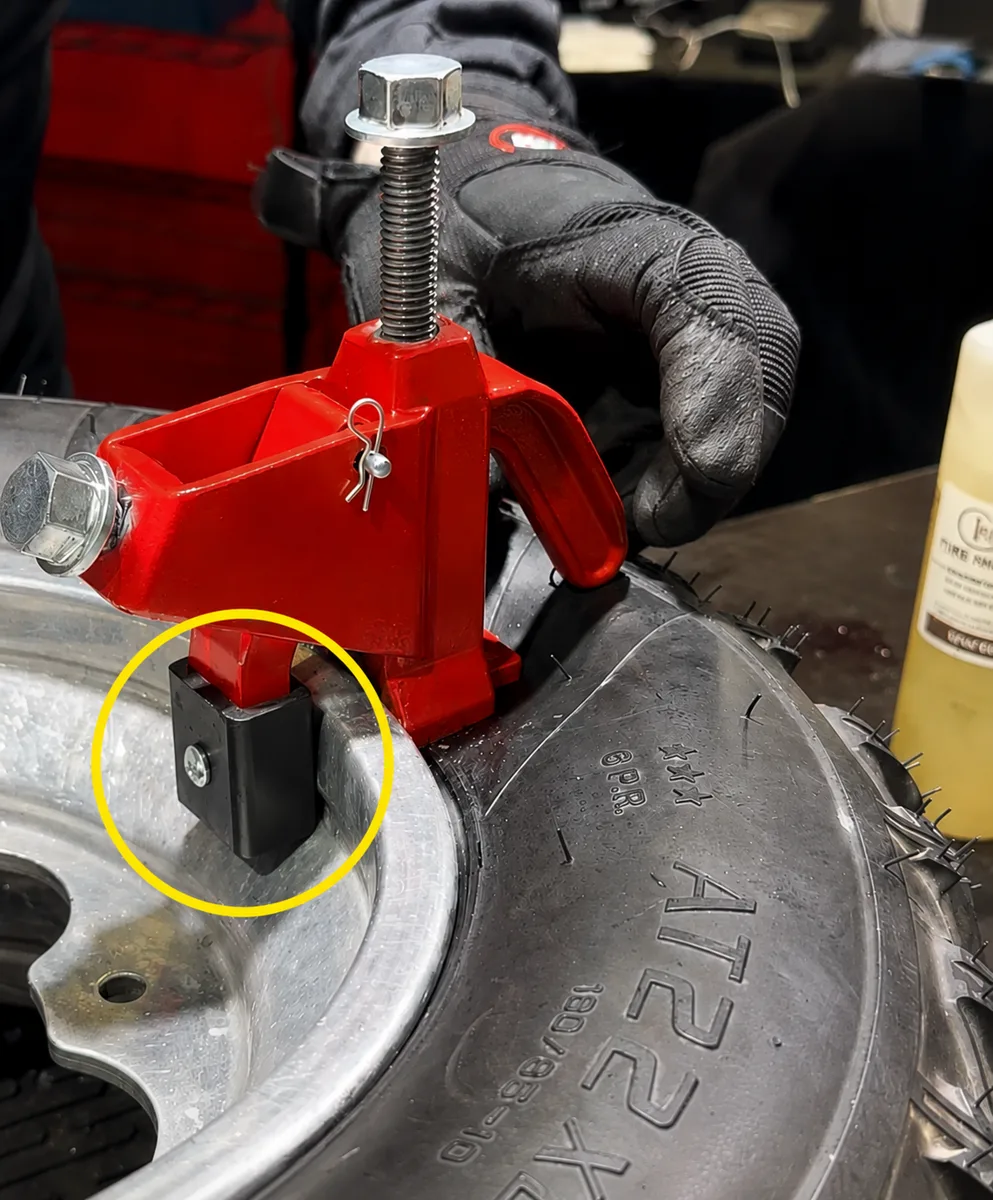

- Protective clamp pad. The investment-cast body uses an HDPE clamp pad that grips the rim lip without chewing the finish.
- No prying against the rim. The tool anchors itself, so the tire iron isn't fighting the rim for leverage.
- Predictable pressure. The ram drives the same way every time, controlled by the tool — not your swing.
That means you can break the bead trailside, patch the tire or swap the TPMS sensor, and remount without adding pry marks to the wheel.
Fun fact: The HDPE (High Density Polyethylene) in that clamp pad — the same plastic used in kayak hulls — is actually harder than most rim finishes but too smooth to bite into them. That mismatch is exactly the point: hard enough to hold the clamp force, too slick to leave a mark.
That's why the job gets done on the trail or in the driveway without adding fresh marks to the wheel you're trying to save.
Meet the BeadBuster Kit Lineup: Find your Match
Once the bead has to come off, you don't need a better workaround. You need a tool that was actually built for this. BeadBuster clamps directly to the rim lip and drives the bead loose from underneath — the same way every time, on the trail or in the driveway.
Both models use the same patented mechanism. The only question is which size matches your rig.
Whichever one matches your rig, both do the one thing a wood block, a hammer, and a can of starting fluid never will: anchor at the rim lip and break the bead the same way, every time — patented, not improvised.
Find Your BeadBuster Match
Two quick questions. One clear recommendation.
1. What size tires are you running?
BeadBuster Kit Lineup
Complete kits with the tool, tire irons, bead lube, and everything you need for the full job.

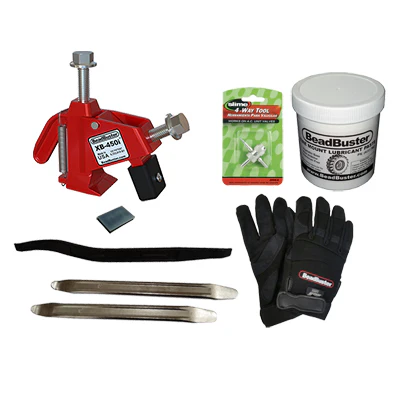

XB-450i Deluxe Kit
$251.99 USD $231.99 USD
Save $20 + free shipping
- XB-450i BeadBuster
- 3-pc Tire Irons Set
- Tire Lube Paste
- Work Gloves
- Valve Core Tool
- Spacer for 7"–8" ATV Wheels

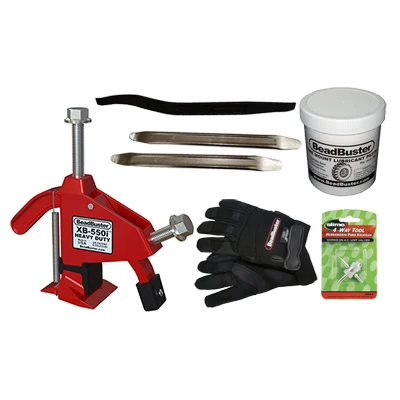

XB-550i HD Deluxe Kit
$396.99 USD $366.99 USD
Save $30 + free shipping
- XB-550i HD BeadBuster
- 3-pc Tire Irons Set
- Tire Lube Paste
- Work Gloves
- Valve Core Tool
The Deluxe Kit is the smarter buy. You get the bead breaker you need, plus the tire irons, lube, and tools to actually finish the job — all in one box, shipped free.
67,000+ sold
Trusted by off-roaders since 2012
Swipe the table sideways to compare →

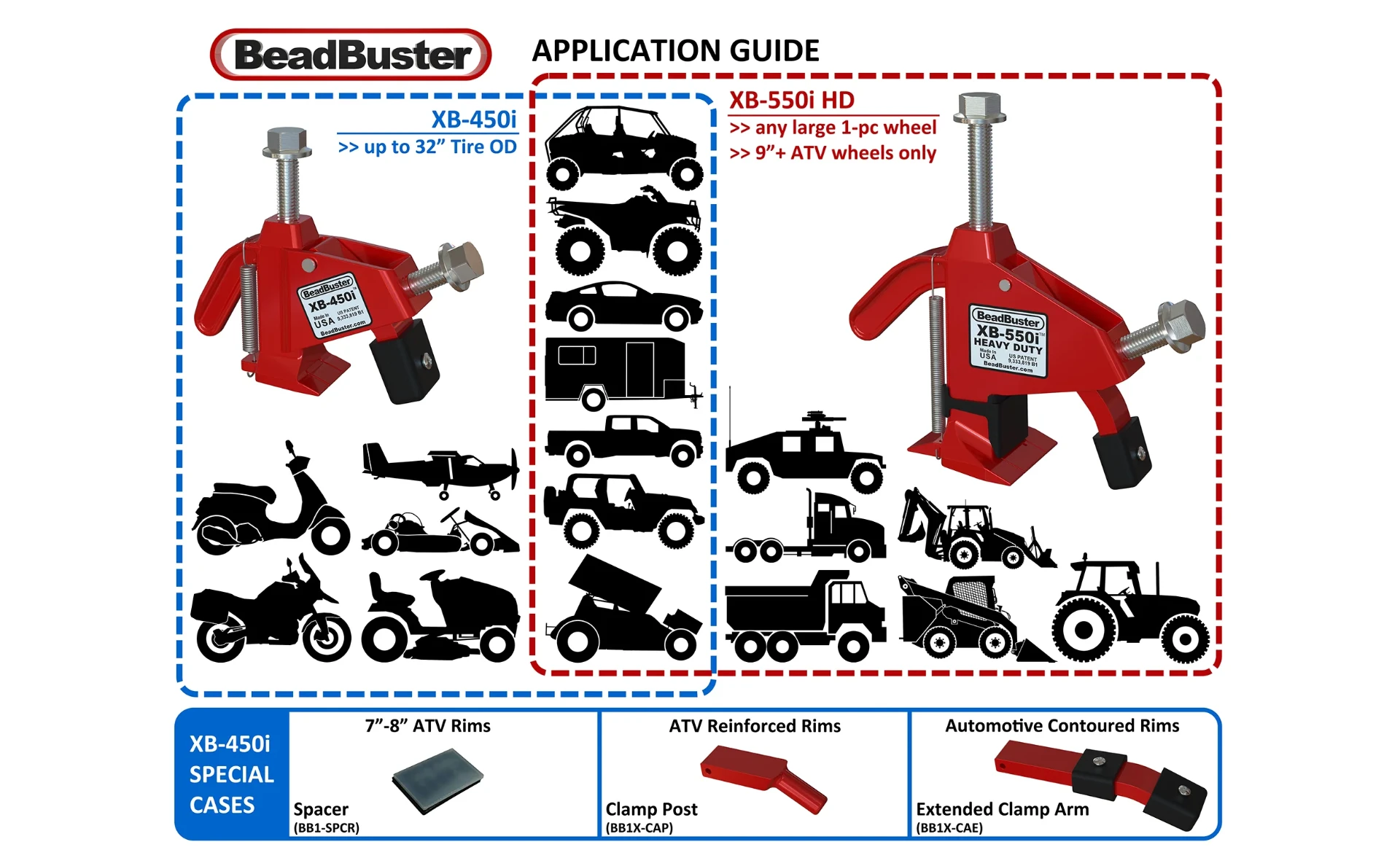

| XB-450i | XB-550i HD | |
|---|---|---|
| Price | $149 | $299 |
| Tire size range | Up to ~32" O.D. | Any large 1-piece wheel, 9"+ ATV wheels |
| Best for | ATVs, UTVs, motorcycles, cars, trailers, pickups, and Jeep/Wrangler-class rigs at this tire size | Heavier beadlock setups, larger off-road tires, and any rig where the bead needs more clamp and ram force |
| Clamp arm | Investment-cast 4140 steel body with HDPE clamp pad | Hardened 4140 alloy steel clamp arm (HRC 50) for higher force |
| Rock-rim accessory post | Optional Clamp Post available | Built for the wider fit range |
Same tool, same patent, sized for the job. If you're not sure which one your rig needs, refer to the full application guide below.
Just Want the Bead Breaker itself?
The same tools that ship in every Deluxe Kit are also available on their own.

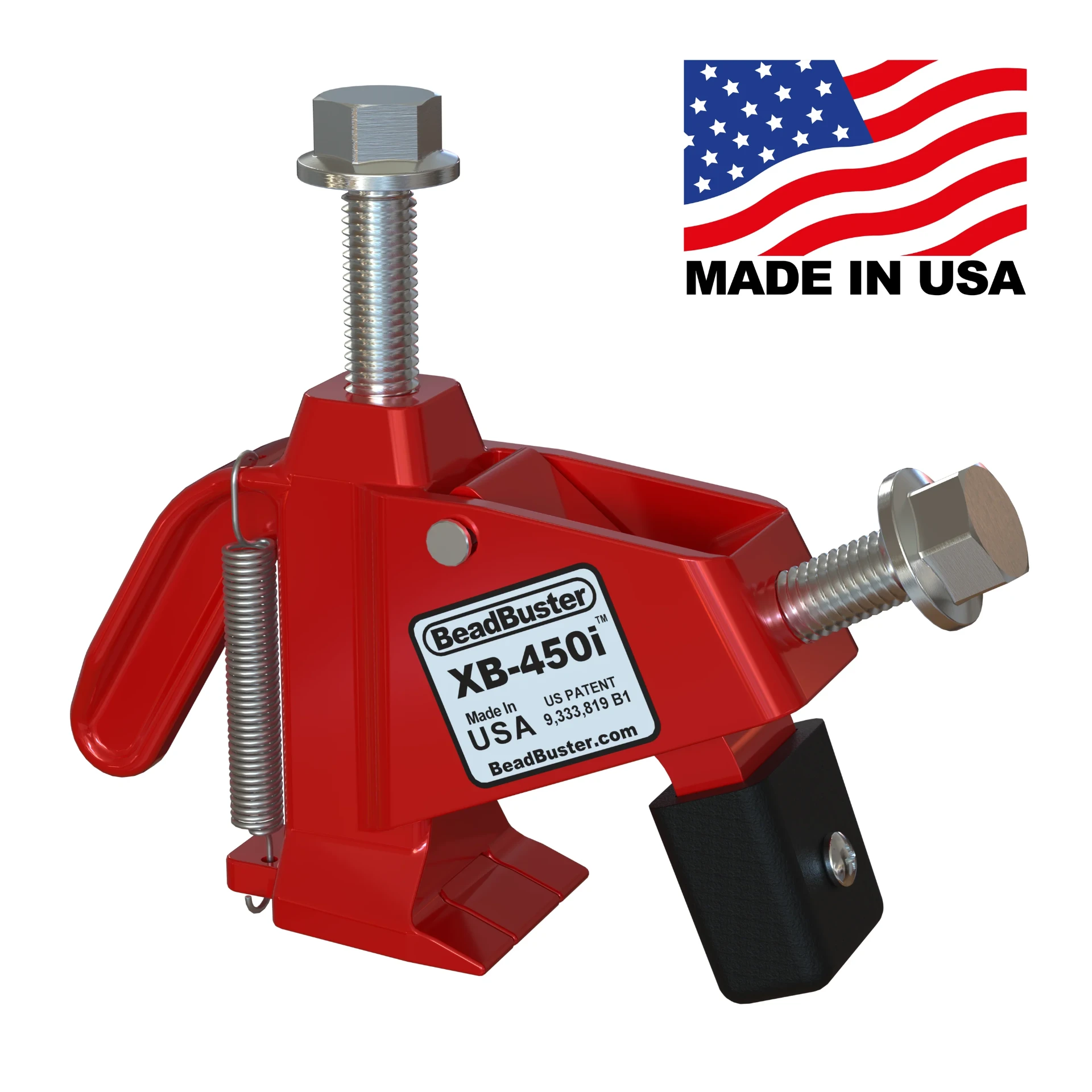

XB-450i — $149
Fits: most tires up to 32" O.D.
- Covers powersports, ATVs, motorcycles, cars, trailers, pickups, and Jeep/Wrangler-class rigs at this tire size
- Investment-cast 4140 steel body, HDPE clamp pad protects the rim
- Accessory Clamp Post available for reinforced ATV/UTV "Rock Rims"
Right for you if: your rig is running tires at or under roughly 32" O.D.
Buy now

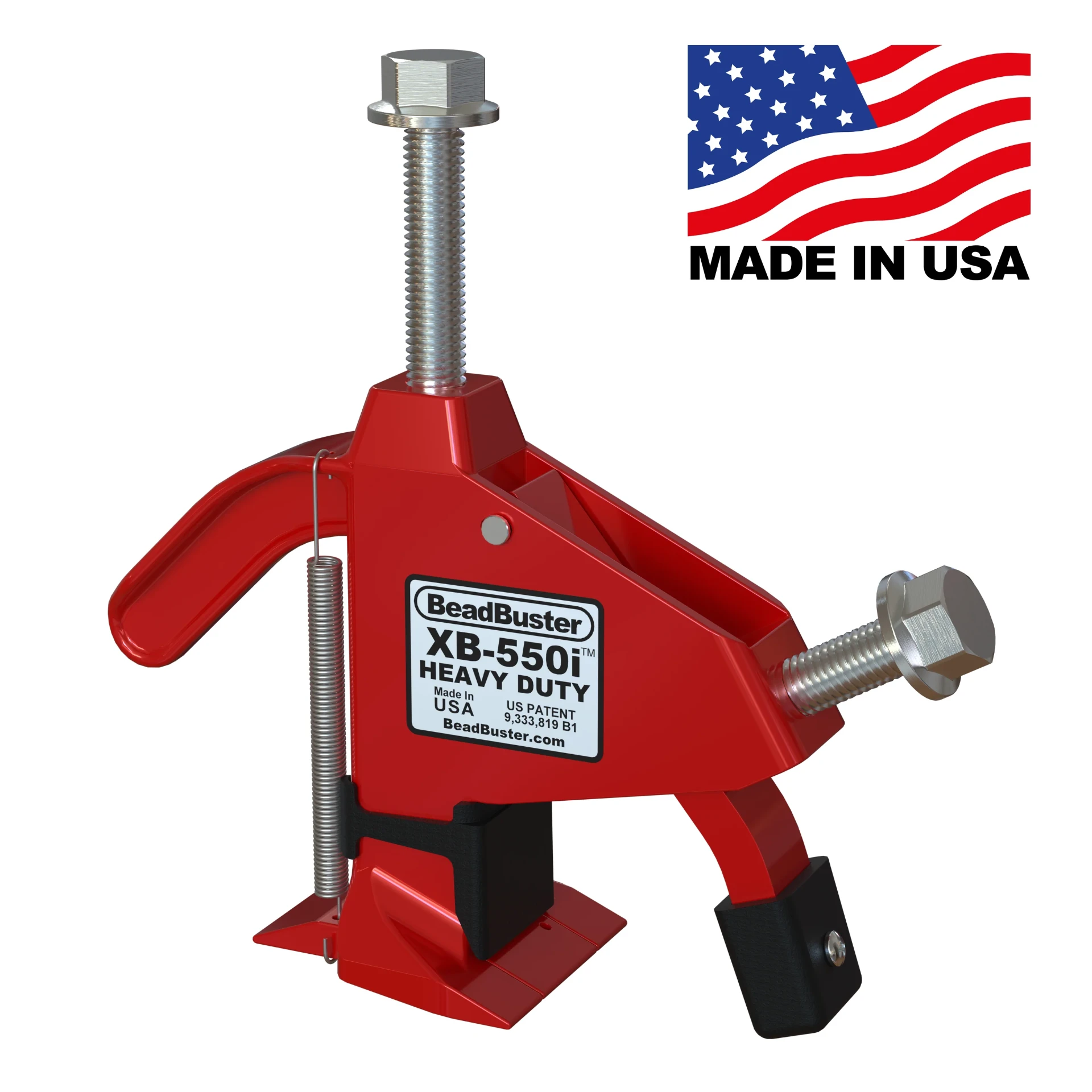

XB-550i HD — $299
Fits: any large 1-piece wheel, 9"+ ATV wheels
- Covers the same Jeep/UTV/ATV/automotive range as the 450i, plus heavier-duty equipment — built for bigger tires and beads that need more force to break loose
- Hardened 4140 alloy steel clamp arm (HRC 50) — more clamp force and ram force than the 450i
Right for you if: you're running larger tires, a heavier beadlock setup, or want the wider fit range
Buy nowOff-Road Tires Fight Back. You Need a Tool That Doesn't.
Sidewall slice, tread puncture, a corroded bead — off-road tires take a beating, and sooner or later you'll need to break that bead to fix it right. Cheap tools bend. Improvised tools — wood blocks, pipes, screwdrivers — slip, and they gouge a rim you paid four figures for. BeadBuster tools are built to take that fight and win it.
- Poly-protected contact points — no rim damage
- Portable — no bench, no shop, works at the trailhead or in the driveway
- Patented anchor design (US9333819B1)
- Made in USA, 67,000+ sold since 2012
The difference isn't just the tool in your hand — it's the trail day that doesn't end early.
Fixed at the trailhead. Back on the trail in minutes — not back in town.
No tow truck, no shop appointment, no waiting. With a BeadBuster in the rig, a bead problem becomes a five-minute fix instead of a ruined day.
Off-Roaders Trust the BeadBuster to Get Them Back on the Trail
“I have the BB550 and it works great. If you have a cordless impact, it takes seconds to bust 46” tire beads off Stazworks rims. (Double bead locks)”
WaterH
North Florida · 46” tires on double beadlocks
“I ised a BeadBuster on my gorilla taped KMCs with treps. Removed them no problem!”
94toytruck
Eastern PA · taped KMC wheels, Trepador tires
“I have a BeadBuster XB-450 that I'm really happy with. Have done a couple ATV tires with it so far without trouble.”
mdim
Well-known member · ATV tires with the XB-450
“i use this to dismount my beadlock wheels at home, 37" mud terrain rubber on 17" wheel. works perfect”
Amazon Customer
Verified Purchase · XB-550 · beadlock wheels, 37” mud terrains
“Worked very well when breaking the bead on my Jeep tires (M + S 245R17 size). Easy tool to use. Go to the BeadBuster website and watch the video for the XB 550. It is so much better than using a jack to break the tire bead.”
Amazon Customer
Verified Purchase · XB-550 · Jeep tires
“I was working on some old ATV's that had very old tires essentially "welded" to the rims. I tried EVERY trick in the book... after 20 minutes I had both of the tires I was working on broken loose and off the rims. Amazing performance! I have now used this to change 6 different ATV tires and think it is an excellent tool.”
Amazon Customer
Verified Purchase · XB-450 · stubborn ATV tires
“Works well made break down of atv tires easy.. well worth the money.”
Jack
Verified Purchase · XB-450 · ATV tires
“This tool made the task of removing ATV tires easy and fast. Great little tool.”
k. Murray
Verified Purchase · XB-450 · ATV tires
“I needed this to access dead TPMS sensors and replace them. It was fantastic. Solid built, comes well lubricated, good tolerances and a 3/4 socket on an impact wrench makes it fast.”
Amazon Customer
Verified Purchase · XB-450 · TPMS sensor swap
“I've been using the “BeadBuster” tool for years now to remove every size tire imaginable. It does the job in a fast manner and without damage to the tire or rim... I wondered how well it would do on 40" Treps. The BeadBuster made short work of the job. Those rims are Hutchinson Beadlocks and if you know anything about them you know removing a tire can be a huge PITA. It took me longer to remove the nuts from the two halves than it did to break the bead on both halves.”
RZR Forums member
Rock buggy · 40” Trepadors on Hutchinson beadlocks
“This is the best tool I have ever purchased for my tool box. It takes ATV tires off with just a 3/8 ratchet.”
Can-Am Forum member
Can-Am ATV · steel rims, 3/8” ratchet only
“I own and swear by the BeadBuster. I have used it on both steel and aluminum. Big thing to remember is not to overtighten when locking the tool on the rim... when it comes to breaking down the beads of ATV wheels, they are the worst. It works fine to put tires on rims once I built a better lever than the supplied one.”
Can-Am Forum member
Can-Am ATV · steel and aluminum rims
“If you are out in the middle of nowhere using your electric impact and a 3/4 socket it's a life saver... on the stock rims with factory tires it worked great, no problem. Never had a rim problem using it.”
Can-Am Forum member
Can-Am ATV · ITP rims and Bighorns · trailside use
“An hour ago I used this to break the bead on my split rims and the Bead Buster worked like a champ! Less expensive and smaller than Tyrepliers too.”
IH8MUD member
Redlands, CA · Land Cruiser split rims · XB-451
“The Bead Buster is relatively expensive... I mostly bought it to use on ATV tires, but it comes in VERY handy for automotive tire use too.”
IDIBRONCO
Bronco / diesel truck owner · XB-455 · ATV + automotive tires
Why Off-Roaders Choose BeadBuster
A bead problem doesn't care where you are. The right tool should work everywhere — and keep working for years.
Patented rim-lip anchor
The only bead breaker that grips the rim lip, not the sidewall. Patented US9333819B1 — the anchor point is literally why it holds when everything else slips.
Made in USA, cast in 4140 steel
Single-piece investment-cast, hardened 4140 steel body. Not stamped, not welded, not imported.
Dual-sided Ram Foot
Four length configurations cover lock rings and rim profiles from 9-inch ATV wheels up to full-size off-road tires.
No rim damage
Poly bumper contact points protect the finish. Break the bead without explaining fresh scratches to your wheel guy.
Trailhead to driveway
No bench, no shop air, no improvised anchors. Just an impact wrench and a few minutes — anywhere.
Proven in the field
67,000+ BeadBuster tools sold since 2012. Trusted by rock crawling and off-road communities who actually break beads.
Off-Roading Bead-Breaking FAQ
Common questions trail riders ask before they put a BeadBuster in their rig.
Will this work on beadlock wheels?
Yes. The BeadBuster clamps to the rim and pushes the bead loose, so it works on beadlock, split-ring, and conventional wheels. The feet engage the gap between the tire bead and rim lip — exactly where the bead is seated — without relying on the wheel style to hold it in place.
Does it damage the rim or tire?
The poly-protected contact points are designed to keep the rim finish safe. The tool pushes the bead past the rim's retainer — it does not pry, hammer, or scrape the metal. Used properly, it is far gentler on rims and tires than improvised methods with a block of wood or a hammer.
Can I use it on the trail without a vise or bench?
Yes. That is the whole point. The tool is compact and portable, and you can operate it with a standard wrench or a cordless impact driver. No bench, no shop air, and no need to load the wheel into a trailer and drive to town.
What about TPMS sensors?
TPMS sensors sit inside the tire, on the back of the valve stem. Breaking the bead lets you pull the tire away from the rim far enough to swap a dead sensor without a tire machine. If you are running a modern 4x4, UTV, or SUV with TPMS, this is the difference between a trail-side fix and a dealer visit.
Can I break the bead on a completely flat tire?
Yes. Remove the valve core so there is zero pressure left, then lube the bead and position the tool. The BeadBuster does not need the tire to hold air to push the bead off the rim. It works on fully flat trail tires, low-pressure aired-down tires, and tires that have already broken part of the bead from flexing.
Do I need an impact driver, or can I use a hand wrench?
Either works. A cordless impact driver makes the job faster and easier, especially on heavier off-road tires. A standard hand wrench will still break the bead — it just takes a few more turns. Many owners keep a wrench in the tool kit as a backup.
How do I reseat the bead in the field without a tire machine?
Clamp the wheel steady, work the tire over the rim with tire spoons, and use short bursts of air from a compressor or CO2 tank to seat the bead. A strap around the tire can help push the sidewall out evenly before you inflate. The BeadBuster Deluxe Kit includes the spoons and lube you need for the full remount job.
Is it safe to break the bead on a loaded tire?
No. Always remove the wheel from the vehicle and place it on the ground before breaking the bead. A loaded tire can shift unexpectedly and pin your hands or the tool. Take the wheel off, deflate it fully, and work on a stable surface.
Get It Before Your Next Trail Day
The best time to have this in the rig is before you're stuck at the trailhead with a sliced sidewall or a dead TPMS sensor, not after. If you've got a trip or a trail season coming up, this is the tool that keeps a bead problem from turning into a scrapped tire or a long walk back.
Buy now
